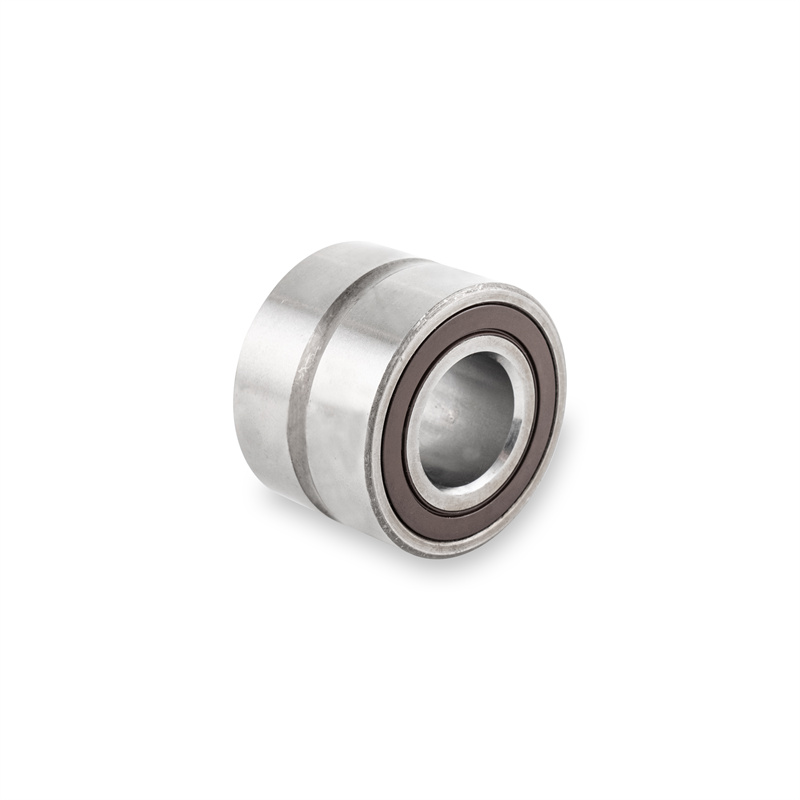

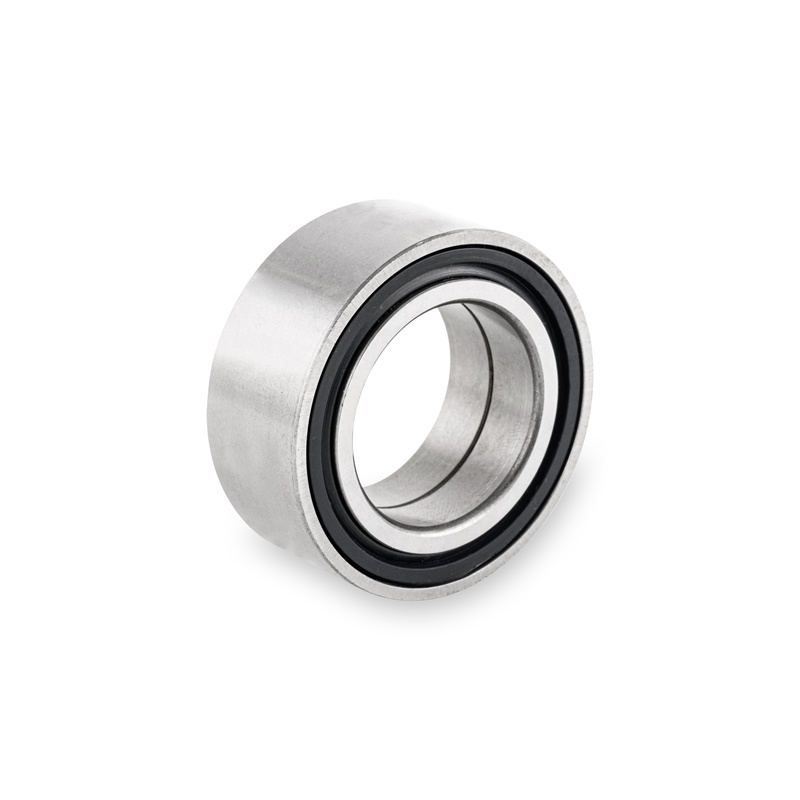

Double Row Angular Contact Ball Bearing can bear large radial loads, mainly radial and axial combined loads and torque loads, limiting the axial displacement of both sides of the shaft.
Can be used in applications where axial space is limited when two single-row angular contact ball bearings are arranged in a back-to-back arrangement.
|
Basic size /mm |
Basic nominal charge /kN |
Limit speed /r·min-1 |
Mass /kg |
Bearing code |

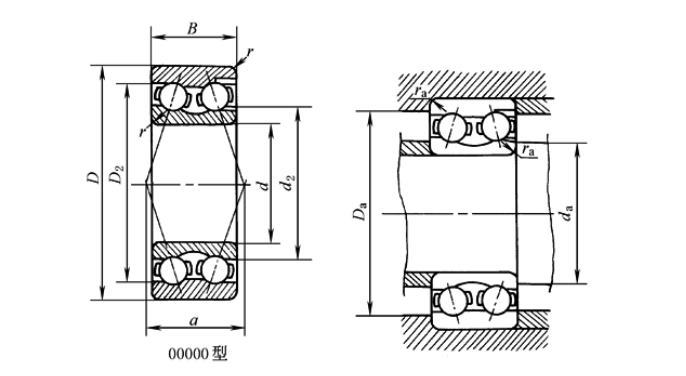

Other sizes /mm | Installation size /mm | |||||||||
|
d |
D |
B |
Cr |
C0r |
fat | oil |
W |
3200 |
d2 |
D2 |
a |
r |
da |
Da |
ra |
|
10 |
30 |
14.3 |
7.42 |
4.30 |
16000 |
22000 |
0.054 |
3200 |
17.7 |
23.6 |
18 |
0.6 |
15 |
25 |
0.6 |
|
12 |
32 |
15.9 |
10.2 |
5.60 |
15000 |
20000 |
0.058 |
3201 |
19.1 |
26.5 |
20 |
0.6 |
17 |
27 |
0.6 |
|
15 |
35 |
15.9 |
11.2 |
6.80 |
12000 |
17000 |
0.066 |
3202 |
22.1 |
29.5 |
22 |
0.6 |
20 |
30 |
0.6 |
|
17 |
40 |
17.5 |
14.0 |
8.65 |
10000 |
15000 |
0.1 |
3203 |
25.2 |
33.6 |
25 |
0.6 |
22 |
35 |
0.6 |
|
20 |
47 |
20.6 |
18.5 |
12.0 |
9000 |
13000 |
0.16 |
3204 |
29.6 |
39.5 |
30 |
1 |
26 |
41 |
1 |
|
52 |
22.2 |
22.2 |
14.2 |
8500 |
12000 |
0.22 |
3304 |
31.8 |
42.6 |
32 |
1.1 |
27 |
45 |
1 |
|
|
25 |
52 |
20.6 |
20.2 |
14.0 |
8000 |
11000 |
0.18 |
3205 |
34.6 |
44.5 |
33 |
1 |
31 |
46 |
1 |
|
62 |
25.4 |
31.2 |
20.8 |
7500 |
10000 |
0.35 |
3305 |
38.4 |
51.4 |
38 |
1.1 |
32 |
55 |
1 |
|
|
30 |
62 |
23.8 |
25.2 |
20.0 |
7000 |
9500 |
0.29 |
3206 |
41.4 |
53.2 |
38 |
1 |
36 |
56 |
1 |
|
72 |
30.2 |
36.8 |
28.5 |
6300 |
8500 |
0.53 |
3306 |
39.8 |
64.1 |
44 |
1.1 |
37 |
65 |
1 |
|
|
35 |
72 |
27 |
33.5 |
27.5 |
6000 |
8000 |
0.44 |
3207 |
48.1 |
61.9 |
45 |
1.1 |
42 |
65 |
1 |
|
80 |
34.9 |
44.0 |
34.0 |
5600 |
7500 |
0. 73 |
3307 |
44.6 |
70.1 |
49 |
1.5 |
44 |
71 |
1.5 |
|
|
40 |
80 |
30.2 |
40.5 |
33.5 |
5600 |
7500 |
0. 58 |
3208 |
47.8 |
72.1 |
49 |
1.1 |
47 |
73 |
1 |
|
90 |
36.5 |
53.2 |
43.0 |
5000 |
6700 |
0.95 |
3308 |
50.8 |
80.1 |
56 |
1.5 |
49 |
SI |
1.5 |
|
|
45 |
85 |
30.2 |
42.8 |
38.0 |
5000 |
6700 |
0.63 |
3209 |
52.8 |
77.1 |
52 |
1.1 |
52 |
78 |
1 |
|
100 |
39.7 |
64.8 |
73.5 |
4500 |
6000 |
1.40 |
3309 |
63.8 |
86.3 |
64 |
1.5 |
54 |
91 |
1.5 |
|
|
50 |
90 |
30.2 |
42.8 |
39.0 |
4800 |
6300 |
0.66 |
3210 |
57.8 |
82.1 |
56 |
1.1 |
57 |
83 |
1 |
|
110 |
44.4 |
79.2 |
96.5 |
4000 |
5300 |
1.95 |
3310 |
73.3 |
97.0 |
73 |
2 |
60 |
100 |
2 |
|
|
55 |
100 |
33.3 |
51.5 |
67.0 |
4300 |
5600 |
1.05 |
3211 |
70.4 |
88.3 |
64 |
1.5 |
64 |
91 |
1.5 |
|
120 |
49.2 |
85.8 |
108 |
3800 |
5000 |
2.55 |
3311 |
81.0 |
110 |
80 |
2 |
65 |
110 |
2 |
|
|
60 |
110 |
36.5 |
65.0 |
85.0 |
3800 |
5000 |
1.4 |
3212 |
78.0 |
98.3 |
71 |
1.5 |
69 |
101 |
1.5 |
|
130 |
54 |
100 |
128 |
3400 |
4500 |
3.25 |
3312 |
87.2 |
115 |
86 |
2.1 |
72 |
118 |
2.1 |
|
|
65 |
120 |
38.1 |
70.2 |
95.0 |
3600 |
4800 |
1.75 |
3213 |
83.7 |
105 |
76 |
1.5 |
74 |
111 |
1.5 |
|
140 |
58.7 |
115 |
150 |
3200 |
4300 |
4.1 |
3313 |
92.5 |
122 |
94 |
2.1 |
77 |
128 |
2.1 |
|
|
70 |
125 |
39.7 |
68.8 |
98.0 |
3200 |
4300 |
1.90 |
3214 |
90.6 |
111 |
81 |
1.5 |
79 |
116 |
1.5 |
|
150 |
63.5 |
132 |
172 |
2800 |
3800 |
5.05 |
3314 |
99.2 |
131 |
101 |
2.1 |
82 |
138 |
2.1 |
|
|
75 |
130 |
41.3 |
75.8 |
110 |
3200 |
4300 |
2.10 |
3215 |
94.7 |
116 |
84 |
1.5 |
84 |
121 |
1.5 |
|
160 |
68.3 |
142 |
185 |
2600 |
3600 |
6.15 |
3315 |
106 |
139 |
107 |
2.1 |
87 |
148 |
2.1 |
|
|
80 |
140 |
44.4 |
90.8 |
135 |
2800 |
3800 |
2.65 |
3216 |
102 |
127 |
91 |
2 |
90 |
130 |
2 |
|
170 |
68.3 |
158 |
212 |
2400 |
3400 |
6.95 |
3316 |
113 |
148 |
112 |
2.1 |
92 |
158 |
2.1 |
|
|
85 |
150 |
49.2 |
98 |
145 |
2600 |
3600 |
3.40 |
3217 |
107 |
133 |
97 |
2 |
95 |
140 |
2 |
|
180 |
73 |
175 |
240 |
2200 |
3200 |
8.30 |
3317 |
120 |
157 |
119 |
3 |
99 |
166 |
2.5 |
|
|
90 |
160 |
52.4 |
115 |
172 |
2400 |
3400 |
4.15 |
3218 |
115 |
143 |
104 |
2 |
100 |
150 |
2 |
|
190 |
73 |
198 |
285 |
2000 |
3000 |
9.25 |
3318 |
128 |
169 |
125 |
3 |
104 |
176 |
2.5 |
|
|
95 |
170 |
55.6 |
132 |
205 |
2200 |
3200 |
5.00 |
3219 |
124 |
154 |
111 |
2.1 |
107 |
158 |
2.1 |
|
200 |
77.8 |
215 |
315 |
1900 |
2800 |
11.0 |
3319 |
135 |
178 |
133 |
3 |
109 |
186 |
2.5 |
|
|
100 |
180 |
60.3 |
142 |
220 |
2000 |
3000 |
6.10 |
3220 |
129 |
160 |
118 |
2.1 |
112 |
168 |
2.1 |
|
215 |
82.6 |
230 |
355 |
1800 |
2600 |
13.5 |
3320 |
142 |
187 |
139 |
3 |
114 |
201 |
2.5 |
|
|
110 |
200 |
69.8 |
170 |
270 |
1900 |
2800 |
8.80 |
3222 |
143 |
178 |
132 |
2.1 |
122 |
188 |
2.1 |
|
240 |
92.1 |
262 |
425 |
1700 |
2400 |
19.0 |
3322 |
155 |
205 |
153 |
3 |
124 |
226 |
2.5 |
|
