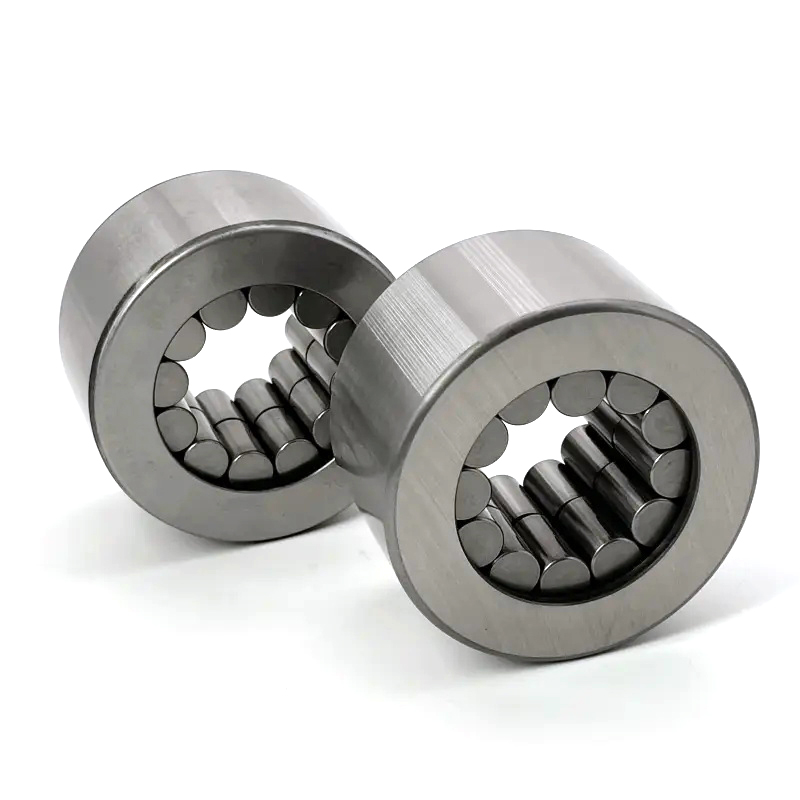

1.What are the components of a cylindrical roller bearing?The components of a cylindrical roller bearing include:
Outer Ring: The outer ring is the outermost component of the bearing and serves as the housing for the entire assembly. It usually has a cylindrical shape and contains the rolling elements.
Inner Ring: The inner ring is the innermost component of the bearing and provides the mounting surface for the rotating shaft. It also contains the raceway, which guides the rolling elements.
Rolling Elements: In cylindrical roller bearings, the rolling elements are cylindrical-shaped rollers that are positioned between the inner and outer rings. These rollers are responsible for carrying the load and reducing friction during rotation.
Cage: The cage, also known as the roller retainer or separator, is a component that separates and guides the rolling elements within the bearing. It maintains proper spacing between the rollers and prevents them from coming into contact with each other, which could cause friction and wear.
Retaining Ring: Some cylindrical roller bearings may feature retaining rings, which are used to secure the rollers and prevent them from falling out of the bearing during installation or operation.
These components work together to facilitate smooth and efficient rotation of the bearing, allowing it to support radial loads while accommodating axial displacement.
2.How does a cylindrical roller bearing differ from other types of bearings?Cylindrical roller bearings are a type of roller bearings distinguished by their cylindrical rollers. They differ from other types of bearings, such as ball bearings or spherical roller bearings, in several key ways:
Roller Shape: Cylindrical roller bearings use cylindrical rollers, which have a high length-to-diameter ratio. This design allows them to handle higher radial loads compared to ball bearings, which use spherical or cylindrical balls.
Load Capacity: Because of their larger contact area, cylindrical roller bearings can support higher radial loads than ball bearings of similar size. This makes them suitable for applications with heavy radial loads, such as machine tools, gearboxes, and electric motors.
Axial Load Handling: While cylindrical roller bearings primarily support radial loads, they can also accommodate some axial loads. However, they are not designed to handle pure axial loads as effectively as thrust bearings.
Misalignment Compensation: Cylindrical roller bearings can tolerate some misalignment between the shaft and the housing, although excessive misalignment can reduce their efficiency and lifespan. Spherical roller bearings are better suited for applications with significant misalignment.
Speed Limitations: In high-speed applications, cylindrical roller bearings may experience limitations due to centrifugal forces acting on the rollers. Special designs, such as precision cylindrical roller bearings with optimized internal geometries and materials, can mitigate this issue to some extent.
Lubrication Requirements: Proper lubrication is crucial for the performance and longevity of cylindrical roller bearings. Lubricant helps reduce friction between the rollers and raceways, preventing wear and extending the bearing's service life.
