Wholesale Cylindrical Roller Bearing Without Inner Ring Suppliers, Factory - Shaoxing Shangyu Flight Seiko Machinery Co., Ltd.

NEXT:Cylindrical Roller Bearing Without Outer Ring

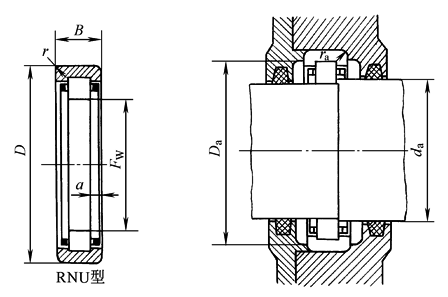

Drawing

Specification

Basic size /mm			Basic load rating /kN		Limit speed /r·min-1		Mass /kg	Bearing code	Other sizes /mm		Installation size /mm
d	EW	B	Cr	C0r	fat	oil	W≈	RNU	a	r min	da min	Da max	Ra max
20	41.5	14	25.8	24.0	12000	16000	-	RN 204 E	2.5	1	25	37.3	1
	41.5	18	30.8	30.0	12000	16000	-	RN 2204 E	3.5	1	25	37.3	1
	45.5	15	29.0	25.5	11000	15000	-	RN 304 E		1.1	26.5	41.2	1
	45.5	21	39.2	37.5	10000	14000	-	RN2304 E	3.5	1.1	26.5	41.2	1
25	46.5	15	27.5	26.8	11000	14000	-	RN205 E	3	1	30	42.3	1
	46.5	18	32.8	33.8	11000	14000	-	RN2205 E	3.5	1	30	42.3	1
	54	17	38.5	35.8	9000	12000	-	RN305 E	3	1.1	31.5	49.4	1
	54	24	53.2	54.5	9000	12000	-	RN2305 E	4	1.1	31.5	49.4	1
30	55.5	16	36.0	35.5	8500	11000	-	RN206 E	3	1	36	50.5	1
	55.5	20	45.0	48.0	8500	11000	-	RN2206 E	3.5	1	36	50.5	1
	62.5	19	49.2	48.2	8000	10000	-	RN 306 E	3.5	1.1	37	58.2	1
	62.5	27	70.0	75.5	8000	10000	-	RN2306 E	4.5	1.1	37	58.2	1
35	64	17	46.5	48.0	7500	9500	-	RN207 E	3	1.1	42	59	1
	64	23	57.5	63.0	7500	9500	-	RN2207 E	4.5	1.1	42	59	1
	70.2	21	62.0	63.2	7000	9000	-	RN307 E	3.5	1.5	44	64.3	1.5
	70.2	31	87.5	98.2	7000	9000	-	RN2307 E	5	1.5	44	64.3	1.5
	83	25	70.8	68.2	6000	7500	0.64	RN407	-	1.5	44	-	1.5
40	71.5	18	51.5	53.0	7000	9000	-	RN208 E	3.5	1.1	47	66.2	1
	71.5	23	67.5	75.2	7000	9000	-	RN2208 E	4	1.1	47	66.2	1
	80	23	76.8	77.8	6300	8000	-	RN308 E	4	1.5	49	73.3	1.5
	80	33	105	118	6300	8000	-	RN2308 E	5.5	1.5	49	73.3	1.5
	92	27	90.5	89.8	5600	7000	-	RN408	-	2	50	-	2
45	76.5	19	58.5	63.8	6300	8000	-	RN209 E	3.5	1.1	52	71.2	1
	76.5	23	71.0	82.0	6300	8000	-	RN2209 E	4	1.1	52	71.2	1
	88.5	25	93.0	98.0	5600	7000	-	RN 309 E	4.5	1.5	54	81.5	1.5
	88.5	36	130	152	5600	7000	-	KNT 2309 E	6	1.5	54	81.5	1.5
50	72.5	16	25.0	27.5	6300	8000	-	RN1010	-	1	55	-	1
	81.5	20	61.2	69.2	6000	7500	-	RN210 E	4	1.1	57	77	1
	81.5	23	74.2	88.8	6000	7500	-	RN2210 E	4	1.1	57	77	1
	97	27	105	112	5300	6700	-	RN310 E	5	2	60	89.6	2
	97	40	155	185	5300	6700	-	RN2310 E	6.5	2	60	89.6	2
55	90	21	80.2	95.5	5300	6700	-	RN211 E	3.5	1.5	64	85	1.5
	90	25	94.8	US	5300	6700	-	RN2211 E	4	1.5	64	85	1.5
	106.5	29	128	138	4300	6000	-	RN311 E	5	2	65	98.2	2
	106.5	43	190	228	4800	6000	-	RN2311 E	6.5	2	65	98.2	2
60	86.5	IS	38.5	45.0	5300	6700	0.303	RN1012	-	1.1	66.5	-	1
	100	22	89.8	102	5000	6300	-	RN212 E	4	1.5	69	93.2	1.5
	100	28	122	152	5000	6300	-	RN2212 E	4	1.5	69	93.2	1.5
	115	31	142	155	4500	5600	-	RN312 E	5.5	2.1	72	106.5	2.1
	115	46	212	260	4500	5600	-	RN2312 E	7	2.1	72	106.5	2.1
65	108.5	23	102	118	4500	5600	-	RN213 E	4	1.5	74	101	1.5
	108.5	31	142	180	4500	5600	-	RN2213 E	4.5	1.5	74	101	1.5
	124.5	33	170	188	4000	5000	-	RN313 E	5.5	2.1	77	114.6	2.1
	124.5	48	235	285	4000	5000	-	RN2313 E	8	2.1	77	114.6	2.1
70	100	20	47.5	57.0	4800	6000	-	RN1014	-	1.1	76.5	-
	113.5	24	112	135	4300	5300	-	RN214 E	4	1.5	79	105.8	1.5
	113.5	31	148	192	4300	5300	-	RN2214 E	4.5	1.5	79	105.8	1.5
	133	35	195	220	3800	4800	-	RN 314 E	5.5	2.1	82	123.5	2.1
	133	51	260	320	3800	4800	-	RN 2314 E		2.1	82	123.5	2.1
75	118.5	25	125	155	4000	5000	-	RN 215 E	4	1.5	84	111.4	1.5
	118.5	31	155	205	4000	5000	-	RN 2215 E	4.5	1.5	84	111.4	1.5
	143	37	228	260	3600	4500	-	RN 315 E	5.5	2.1	87	131.6	2.1
80	127.3	26	132	165	3300	4800	-	RN 216 E	4.5	2	90	119.8	2
	127.3	33	178	242	3800	4800	-	RN 2216 E	4.5	2	90	119.8	2
	151	39	245	282	3400	4300	-	RN 316 E	6	2.1	92	139	2.1
85	136.5	28	158	192	3600	4500	-	RN 217 E	4.5	2	95	129	2
	136.5	36	205	272	3600	4500	-	RN2217 E	5	2	95	129	2
	160	41	280	332	3200	4000	-	RN317 E	6.5	3	99	147	3
90	145	30	172	215	3400	4300	-	RN218 E	5	2	100	136.4	2
	145	40	230	312	3400	4300	-	RN2218 E	6	2	100	136.4	2
	169.5	43	298	348	3000	3800	-	RN318 E	6.5	3	104	155.5	3
95	154.5	32	208	262	3200	4000	-	RN219 E	5	2.1	107	145.5	2.1
	154.5	43	275	368	3200	4000	-	RN2219 E	6.5	2.1	107	145.5	2.1
	177.5	45	315	380	2800	3600	-	RN319 E	7.5	3	109	163.5	2.5
100	163	34	235	302	3000	3800	-	RN220 E	5	2.1	112	152.8	2.1
	163	46	318	440	3000	3800	-	RN2220 E	6	2.1	112	152.8	2.1
	191.5	47	365	425	2600	3200	-	RN320 E	7.5	3	114	175	2.5
105	168.8	36	185	235	2800	3600	2.76	RN221	7.5	2.1	117	161.2	2.1
105	195	49	322	392	2200	3000	-	RN321	9.5	3	119	184	2.5
	180.5	38	278	360	2600	3400	-	RN222 E	6	2.1	122	170.2	2.1
	207	50	352	428	2000	2800	-	RN 322	9	3	124	195	2.5
120	195.5	40	322	422	2200	3000	-	RN 224 E	6	2.1	132	183.5	2.1
120	226	55	440	552	1900	2600	-	RN 324	9.5	3	134	213	2.5
130	204	40	258	352	2000	2800	4.48	RN 226	8	3	144	195	2.5
130	243	58	492	620	1700	2200	-	RN 326	10	4	148	229	3
140	221	42	302	415	1800	2400	5.94	RN 228	8	3	154	211.5	2.5
140	260	62	545	690	1600	2000	13.2	RN 328	11	4	158	245	3
150	238	45	360	490	1700	2200	-	RN 230	8.5	3	164	228	2.5
150	277	65	595	765	1500	1900	17.04	RN 330	11.5	4	16S	262	3
160	255	48	405	552	1600	2000	-	RN 232	9	3	174	245	2.5
160	292	68	628	825	1400	1800	-	RN 332	13	4	178	276	3
170	272	52	425	650	1500	1900	-	RN 234	10	4	188	262	3
170	310	72	715	952	1300	1700	-	RN 334	13.5	4	188	293	3
180	282	52	425	650	1400	1800	-	RN 236	10	4	198	270	3
180	328	75	835	1100	1200	1600	35.9	RN 336	13.5	4	198	309	3
190	299	55	512	745	1300	1700	-	RN 238	10.5	4	208	286.5	3
190	345	78	882	1190	1100	1500	31.6	RN 338	14	5	212	325	4
200	316	58	570	842	1200	1600	-	RN 240	11.5	4	218	302.5	3
200	360	80	972	1290	1000	1400	-	RN 340	IS	5	222	340	4
220	350	65	702	1050	1000	1400	-	RN 244	12.5	4	238	335	3

About FTM

Shaoxing Shangyu Flight Seiko Machinery Co., Ltd.

"Spin into eternity, inherit excellence, and create the future together."

Shaoxing Shangyu Flight Seiko Machinery Co., Ltd. (FTM), founded in 2006, is China Cylindrical Roller Bearing Without Inner Ring Suppliers and Wholesale Cylindrical Roller Bearing Without Inner Ring Factory.And it an enterprise focusing on the R&D, manufacturing, and customization of non-standard bearings, high-precision bearings (import substitution), and bearing accessories and mechanical parts. With more than 30 years of technical design experience, FTM has earned an excellent reputation in the field of high-quality bearings. Our professional technical team provides domestic and foreign customers with high-quality bearing solutions in engineering machinery, textile machinery, and other fields.

Relying on years of professional manufacturing and technical skills, FTM actively introduces advanced CNC machine tools from Japan to ensure product processing accuracy and stability. In addition, FTM's bearing product research is guided by a doctor of tribology. We adhere to the corporate philosophy of innovation and development, and our products are exported to many countries and regions around the world. We have long been supporting and producing various types of bearings for many world-renowned companies, maintaining good production relationships. Spin into eternity, inherit excellence, and create the future together. Choose FTM, and we will be your best choice for bearing solutions.

Professional industry certification

Commitment To Superior Quality

Quality Management System Certificate
Quality Management System Certificate
Quality Management System
Quality Management System
Certification Report
Practical Patent Certificate
Practical Patent Certificate
Practical Patent Certificate
Practical Patent Certificate

News and Blogs

2025-05-09 Industry News
What are the rust prevention and installation precautions for non-standard bearings?
Rust Prevention MeasuresEffective rust prevention for non-standard bearings requires comprehensive control across production, storage, and pre-installation stages. Key steps include:1. Surface Prepara...
2025-05-02 Industry News
Why are plain bearing rod ends crucial for precision engineering?
1. High Precision & Self-Aligning CapabilityRod end bearings feature a spherical sliding contact design, enabling self-alignment within ±3° to ±15° (model-dependent). This compensates for misalign...
2025-04-27 Industry News
Why should manufacturers choose cam rollers bearings over traditional bearings?
1. Structural design innovation: Double breakthrough of thick-walled outer ring and sealing technologyCam roller bearings adopt thick-walled outer ring design, which can withstand higher radial forces...

More Industry knowledge

Shaoxing Shangyu Flight Seiko Machinery Co., Ltd. (FTM) specializes in manufacturing Cylindrical Roller Bearings Without Inner Ring, designed for applications where the shaft cannot serve as a raceway. This innovative bearing structure eliminates the inner ring, directly utilizing the hardened and ground shaft surface as the inner raceway, thereby achieving higher rotational accuracy and compact installation space optimization. Ideal for heavy radial loads and moderate axial loads, our bearings are widely used in robotics, precision machinery, textile equipment, and high-speed automation systems.

Key Advantages:
Precision Engineering: Leveraging over 30 years of technical expertise and guided by tribology PhDs, our bearings ensure exceptional dimensional stability and minimal friction .
Advanced Manufacturing: Equipped with Japanese CNC machine tools and ultra-precision grinding centers, FTM guarantees tolerances within IT4-IT5 grades and surface roughness ≤Ra 0.2μm, meeting stringent international standards .
Customization Flexibility: Tailored solutions for outer diameters (10–250mm), sealing structures (bakelite, nylon, or metal retainers), and multi-row assemblies (double/triple/quadruple) to adapt to diverse load conditions .
Quality Assurance: Certified under IATF16949, our bearings undergo rigorous testing, including chemical composition analysis, ultrasonic flaw detection, and heat treatment validation, ensuring durability even in extreme environments .
Global Recognition: Trusted by Fortune 500 clients like Boeing and Caterpillar, our products are exported to Germany, the U.S., India, and beyond, proving reliability in mission-critical industries.
