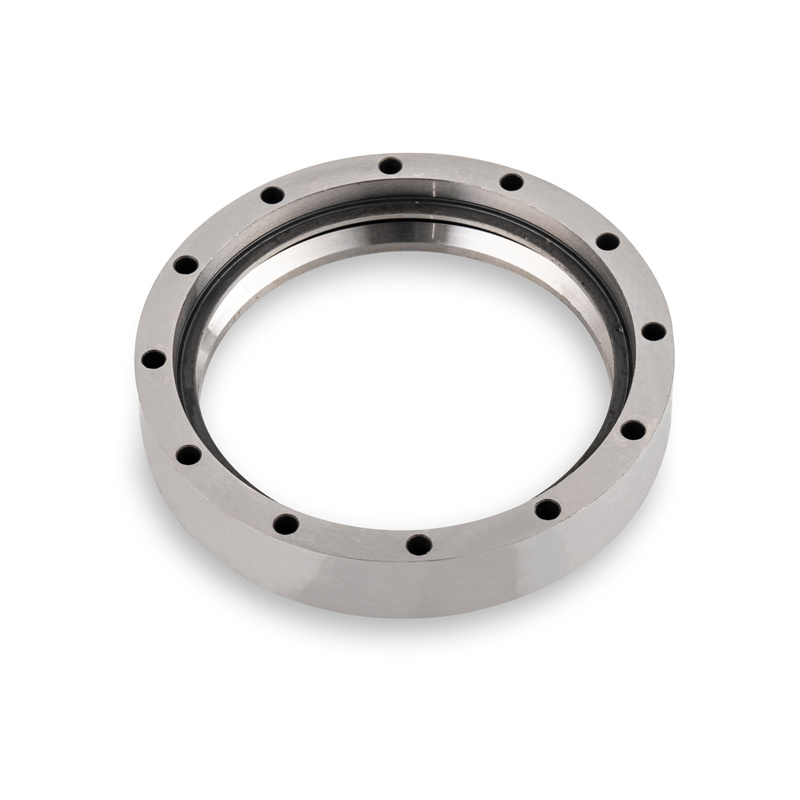

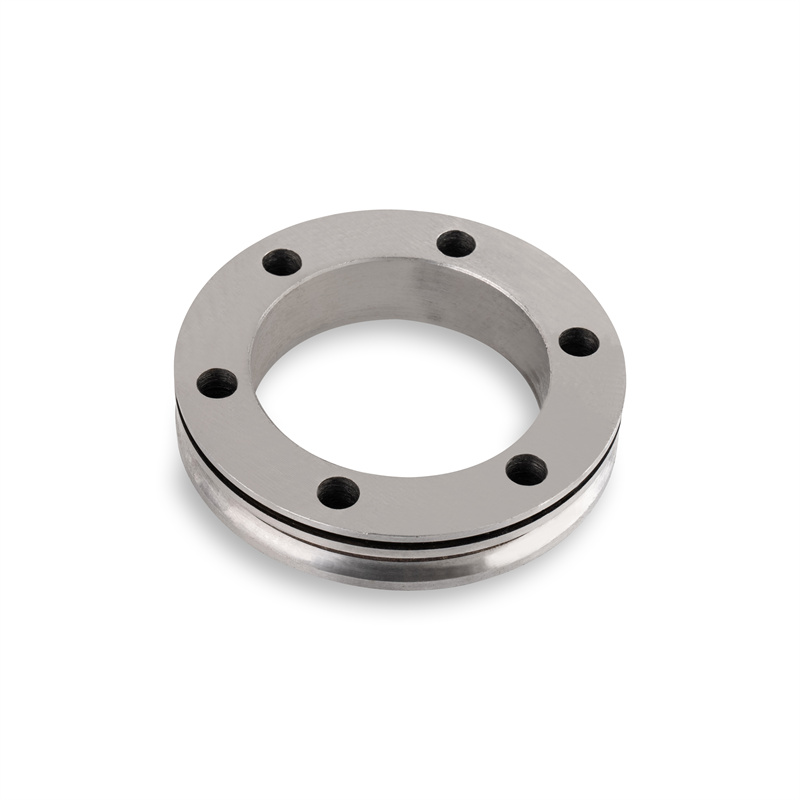

The rings (inner and outer rings) of the crossed roller bearing are the key components of the crossed roller bearing, and because the special design of the crossed roller bearing allows the rolling elements to be arranged alternately at an angle of 90°, the ring structure and processing accuracy are crucial to its performance. Crossed roller bearings are generally used in high-precision scenarios, so the crossed roller bearing rings also have certain requirements for accuracy. FTM can produce high-precision products and can select suitable materials, structures and processing technologies according to application requirements and drawing samples.
The following are the customized options for FTM crossed roller bearing rings:
Structural options for FTM crossed roller bearing rings:
1. Integral ring
Features: The inner or outer ring is an integral design with high rigidity, suitable for heavy-duty applications.
Advantages: Strong load-bearing capacity, high precision, suitable for occasions with large overturning moments.
2. Split ring
Features: The inner or outer ring is divided into two halves and assembled with bolts or fixing rings.
Advantages: Facilitates the assembly of rolling elements and improves production efficiency.
Material selection for FTM cross roller bearing rings:
Bearing steel (GCr15), stainless steel (440C, 316L), lightweight alloy materials (such as aluminum alloy or titanium alloy)
Reduce weight, reduce inertia, and improve dynamic performance.
|
Inner Ring Designation |
mm |
kg Weight |
||
|
D |
F |
B
|
||
|
LR13 |
13 |
17.2 |
24 |
0.01837 |
|
IR14 |
14 |
17 |
17 |
0.009665 |
|
IR15 |
15 |
18~20 |
16~23 |
0.0093~0.0247 |
|
IR16 |
16 |
20~26 |
9~15.5 |
0.00774~0.039504 |
|
IR17 |
17 |
20~24 |
16~20 |
0.011~0.034 |
|
LR17 |
17 |
20 |
30.5 |
0.021 |
|
LR18 |
18 |
26 |
15.5 |
0.033024 |
|
IR19 |
19 |
22 |
14 |
0.010416 |
|
IR20 |
20 |
24~28 |
16~20 |
0.017~0.0452 |
|
LR20 |
20 |
25 |
20.5 |
0.0279 |
|
IR22 |
22 |
26~28 |
12~30 |
0.01373~0.054 |
|
IR25 |
25 |
30~32 |
18~22 |
0.0298~0.052 |
|
LR25 |
25 |
30 |
26.5 |
0.043 |
|
IR28 |
28 |
32 |
17~30 |
0.0245~0.0438 |
|
IR30 |
30 |
35~38 |
16~20 |
0.031~0.065 |
|
LR30 |
30 |
35 |
20.5 |
0.0407 |
|
IR60 |
60 |
68~70 |
25~60 |
0.195~0.463 |
|
IR62 |
62 |
70~75 |
30~39 |
0.2523 |
|
IR65 |
65 |
72~75 |
25~45 |
0.142~0.2362 |
|
IR70 |
70 |
80 |
25~54 |
0.224~0.48 |
|
IR75 |
75 |
84~85 |
44~54 |
0.38572~0.52 |
|
IR80 |
80 |
80~90 |
25~54 |
0.25712~0.55 |
|
IR85 |
85 |
95~100 |
26~63 |
0.28~1.05 |
|
IR90 |
90 |
105 |
63 |
1.11 |
|
IR110 |
110 |
120~125 |
30~40 |
0.409~0.86276 |
Processing characteristics of FTM cross roller bearing rings:
The rings of cross roller bearings require high processing accuracy, and their raceways and dimensions must ensure precise contact with the rolling elements. The following are the main processing technologies that FTM can provide:
1. Turning: used to process the basic shape and size of the rings.
2. Grinding: Precision grinding of the raceway surface to ensure surface finish and geometric accuracy.
3. Heat treatment: To improve the hardness and wear resistance of the rings, quenching and tempering processes are often used.
4. Precision milling: Process the joint surface and bolt holes of the split rings to ensure the overall accuracy after assembly.
5. Coating treatment: Chrome plating or PVD coating treatment of the surface to improve corrosion resistance and surface performance.
Performance and functions of FTM crossed roller bearing rings
1. High rigidity and precision: The precision raceway of the ring provides stable rolling element support and achieves high-precision movement.
2. Carrying multi-directional forces: Due to the cross arrangement of rolling elements, the raceway design of the ring can simultaneously withstand radial force, axial force and overturning moment.
3. Durability and stability: The material and heat treatment process determine the life and wear resistance of the ring.
FTM can meet the specific needs of different industries. If you have special requirements or designs, please contact us for further assistance.
Shaoxing Shangyu Flight Seiko Machinery Co., Ltd. (FTM), founded in 2006, is China Crossed Roller Bearing Rings Suppliers and Wholesale Crossed Roller Bearing Rings Factory.And it an enterprise focusing on the R&D, manufacturing, and customization of non-standard bearings, high-precision bearings (import substitution), and bearing accessories and mechanical parts. With more than 30 years of technical design experience, FTM has earned an excellent reputation in the field of high-quality bearings. Our professional technical team provides domestic and foreign customers with high-quality bearing solutions in engineering machinery, textile machinery, and other fields.
Relying on years of professional manufacturing and technical skills, FTM actively introduces advanced CNC machine tools from Japan to ensure product processing accuracy and stability. In addition, FTM's bearing product research is guided by a doctor of tribology. We adhere to the corporate philosophy of innovation and development, and our products are exported to many countries and regions around the world. We have long been supporting and producing various types of bearings for many world-renowned companies, maintaining good production relationships. Spin into eternity, inherit excellence, and create the future together. Choose FTM, and we will be your best choice for bearing solutions.
