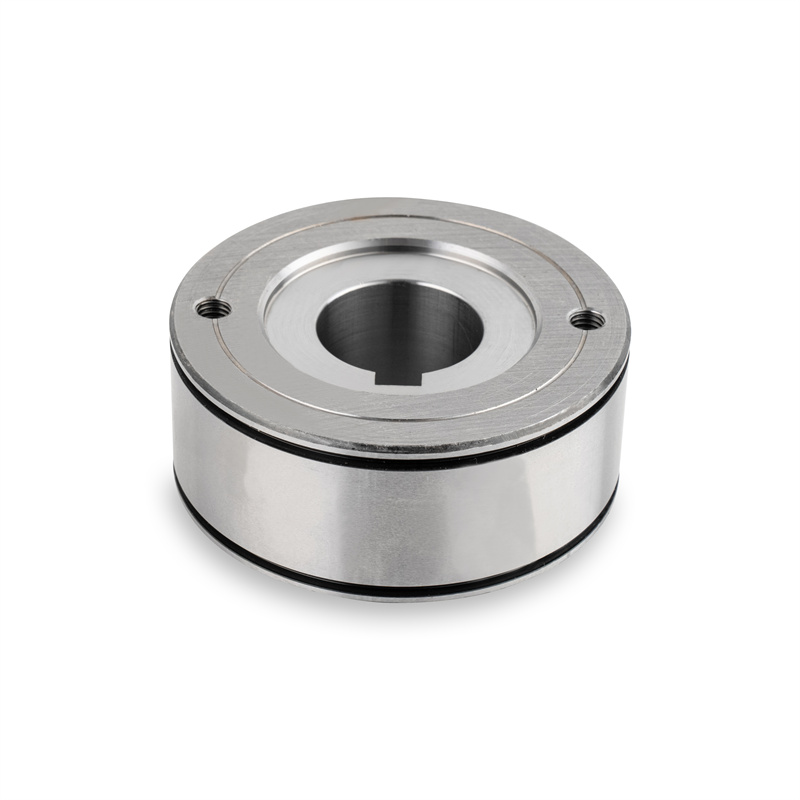

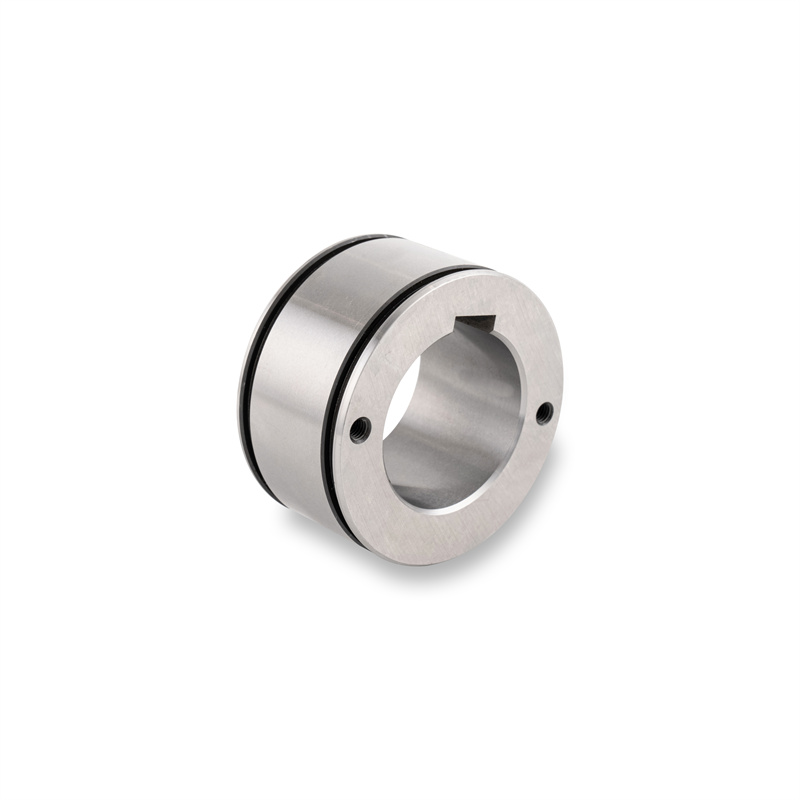

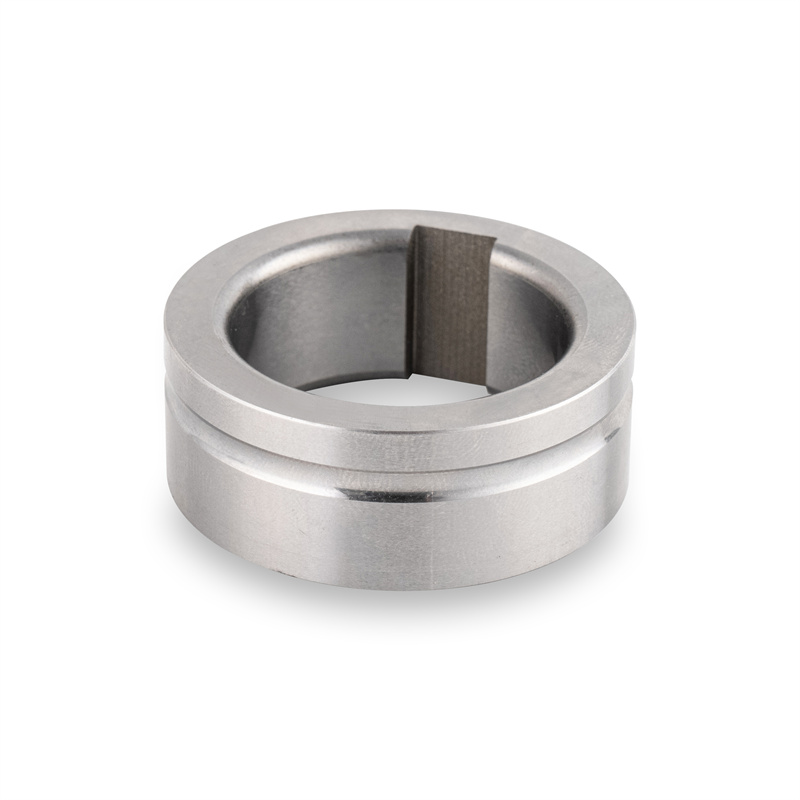

A keyway bearing ring is a mechanical component that is usually used with bearings to provide safe positioning and prevent relative movement between components, such as shafts and hubs. The keyway bearing ring features a keyway that allows a small metal piece to fit into it, ensuring that the bearing or hub is locked in place and that torque is transmitted efficiently.
FTM can provide customized off-the-mark keyway bearing rings in a variety of sizes and materials
FTM keyway bearing ring customization:
1. Accuracy level: P2,P4
2. Material selection: bearing steel, Gcr15, 45 steel, aluminum, etc
3. Size: diameter 10mm-25mm
4. Processing technology: chamfering, drilling, grooving, surface treatment, etc
5. Shape: Customize various shapes
|
Inner Ring Designation |
mm |
kg Weight |
||
|
D |
F |
B
|
||
|
LR13 |
13 |
17.2 |
24 |
0.01837 |
|
IR14 |
14 |
17 |
17 |
0.009665 |
|
IR15 |
15 |
18~20 |
16~23 |
0.0093~0.0247 |
|
IR16 |
16 |
20~26 |
9~15.5 |
0.00774~0.039504 |
|
IR17 |
17 |
20~24 |
16~20 |
0.011~0.034 |
|
LR17 |
17 |
20 |
30.5 |
0.021 |
|
LR18 |
18 |
26 |
15.5 |
0.033024 |
|
IR19 |
19 |
22 |
14 |
0.010416 |
|
IR20 |
20 |
24~28 |
16~20 |
0.017~0.0452 |
|
LR20 |
20 |
25 |
20.5 |
0.0279 |
|
IR22 |
22 |
26~28 |
12~30 |
0.01373~0.054 |
|
IR25 |
25 |
30~32 |
18~22 |
0.0298~0.052 |
|
LR25 |
25 |
30 |
26.5 |
0.043 |
|
IR28 |
28 |
32 |
17~30 |
0.0245~0.0438 |
|
IR30 |
30 |
35~38 |
16~20 |
0.031~0.065 |
|
LR30 |
30 |
35 |
20.5 |
0.0407 |
|
IR60 |
60 |
68~70 |
25~60 |
0.195~0.463 |
|
IR62 |
62 |
70~75 |
30~39 |
0.2523 |
|
IR65 |
65 |
72~75 |
25~45 |
0.142~0.2362 |
|
IR70 |
70 |
80 |
25~54 |
0.224~0.48 |
|
IR75 |
75 |
84~85 |
44~54 |
0.38572~0.52 |
|
IR80 |
80 |
80~90 |
25~54 |
0.25712~0.55 |
|
IR85 |
85 |
95~100 |
26~63 |
0.28~1.05 |
|
IR90 |
90 |
105 |
63 |
1.11 |
|
IR110 |
110 |
120~125 |
30~40 |
0.409~0.86276 |
Main characteristics of FTM keyway bearing rings:
The keyway bearing ring is usually round, with the keyway cut into its circumference.
The keyway can accommodate keys that fit into the appropriate slot on the shaft or housing, ensuring a safe fit.
Type of keyway bearing rings:
Plain keyway bearing rings: Standard design, single keyway, suitable for most applications.
Multi-keyway design: Some rings may have multiple keyways to increase versatility and enhance torque transmission.
Function of keyway bearing ring:
Its main function is to lock the bearing on the shaft or other rotating parts to prevent axial movement.
They help to transfer torque from the shaft to bearings or other additional parts, providing stability to the mechanical system.
Application program:
Machinery: Used in various machinery, bearings are installed on the shaft and need to be fixed.
Automotive: Commonly used in automotive applications, such as drive shafts, where safe connections are critical to performance.
Industrial equipment: for conveyors, rollers and other equipment that requires precise alignment and positioning.
Installation:
Keyway bearing rings are installed by sliding them onto the shaft so that the keyway is aligned with the key and then fixed for assembly.
Proper alignment is the key to ensure smooth bearing operation and avoid excessive wear.
Advantages:
Safe fit: Keyway design ensures safe connection and prevents slippage or misalignment during operation.
Easy assembly: Simplify the assembly and disassembly process, making maintenance and repair more straightforward.
High torque transmission: Efficient torque transmission is achieved, making it suitable for applications that require a large amount of power transmission.
Shaoxing Shangyu Flight Seiko Machinery Co., Ltd. (FTM), founded in 2006, is China Keyway Bearing Ring Suppliers and Wholesale Keyway Bearing Ring Factory.And it an enterprise focusing on the R&D, manufacturing, and customization of non-standard bearings, high-precision bearings (import substitution), and bearing accessories and mechanical parts. With more than 30 years of technical design experience, FTM has earned an excellent reputation in the field of high-quality bearings. Our professional technical team provides domestic and foreign customers with high-quality bearing solutions in engineering machinery, textile machinery, and other fields.
Relying on years of professional manufacturing and technical skills, FTM actively introduces advanced CNC machine tools from Japan to ensure product processing accuracy and stability. In addition, FTM's bearing product research is guided by a doctor of tribology. We adhere to the corporate philosophy of innovation and development, and our products are exported to many countries and regions around the world. We have long been supporting and producing various types of bearings for many world-renowned companies, maintaining good production relationships. Spin into eternity, inherit excellence, and create the future together. Choose FTM, and we will be your best choice for bearing solutions.
Hello and welcome to our guide on keeping your ball bearings in top condition! 1. Introduction Ball bearings might seem like simple, small components, but they play a crucial role in countless device...
1. Introduction to Crossed Roller Bearings Crossed roller bearings are a type of rolling-element bearing designed to support significant radial, axial, and moment loads simultaneously. Unlike conventi...
1. Introduction to Thin Section Bearings What Are Thin Section Bearings? Thin section bearings, also known as slim bearings or ultra-thin bearings, are a specialized type of rolling-element bearing de...
Shaoxing Shangyu Flight Seiko Machinery Co., Ltd. (FTM), with over 30 years of expertise in high-precision bearing solutions, proudly presents our Keyway Bearing Rings. These essential mechanical components are designed to ensure secure positioning and prevent unwanted relative movement between crucial elements like shafts and hubs, making them indispensable for reliable machinery operation.
Our keyway bearing rings feature a precisely engineered keyway, allowing for the perfect fit of a small metal key. This design effectively locks the bearing or hub in place, guaranteeing efficient torque transmission and preventing slippage even under demanding conditions. This secure fit is critical for maintaining the integrity and performance of your mechanical systems.
At FTM, we understand that every application has unique requirements. Leveraging our extensive technical design experience and advanced manufacturing capabilities, we offer customized off-the-mark keyway bearing rings tailored to your exact specifications. Our commitment to high-quality manufacturing and import substitution ensures you receive superior products that meet the most stringent industry standards.
FTM’s Keyway Bearing Ring Customization Options:
Choosing FTM means partnering with a manufacturer renowned for its high-quality bearings and exceptional service. Our professional technical team works closely with domestic and international customers, providing expert guidance and high-quality bearing solutions for diverse sectors, including engineering machinery and textile machinery. We are dedicated to delivering products that not only meet but exceed your expectations, ensuring optimal performance and longevity for your equipment.
Experience the FTM difference—where precision, customization, and unparalleled expertise converge to provide the perfect keyway bearing ring solutions for your most critical applications.
If you have any questions or would like to know more about bearings, please feel free to contact us!
